Category: Y Strainer
Class125 Y Strainer
Model:GL41H-125LB
Working pressure :125LB
Working temperature:≤150°C
Nominal size:DN 50-350
End connection:Double Flange
Design standard:API609
Face to face:API609
Flange drilling:ANSI B16.1
Inspection and test:API598
Body material:Cast iron, ASTM A126 Class B
Body coating:Epoxy
Disc material:Cast iron, ASTM A126 Class B
Screen:SS304
Actuator:Automatic
|

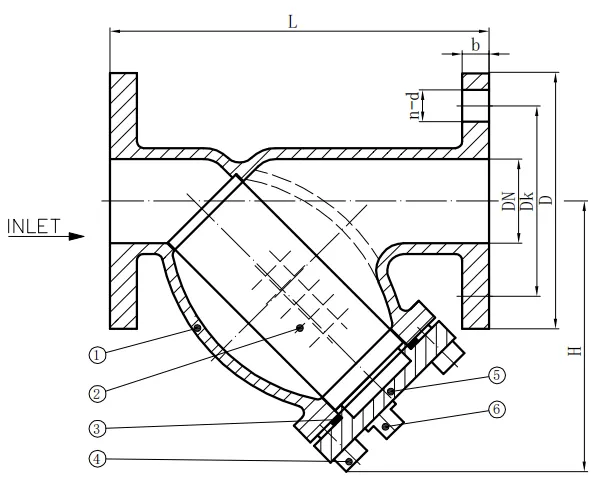

Technical Parameters 125LB |
|||||
|
DN |
L |
Dk |
D |
b |
n-d |
|
2“ |
225 |
121 |
152 |
16 |
4-Φ19 |
|
2.5” |
273 |
140 |
178 |
17.5 |
4-Φ19 |
|
3“ |
292 |
152.5 |
191 |
19 |
4-Φ19 |
|
4” |
352 |
190.5 |
229 |
24 |
8-Φ19 |
|
5“ |
416 |
216 |
254 |
23.8 |
8-Φ22 |
|
6” |
470 |
241.3 |
279 |
25.4 |
8-Φ22 |
|
8“ |
543 |
298.5 |
343 |
28.6 |
8-Φ22 |
|
10” |
660 |
362 |
406 |
30.2 |
12-Φ25 |
|
12“ |
762 |
432 |
483 |
31.8 |
12-Φ25 |
|
14” |
949 |
476 |
533 |
35 |
12-Φ29 |
