Category: Butterfly Valve
Butterfly Valve Double Eccentric Type Series 14
Model:D342X
Working pressure :16 Bar
Working temperature:0~110°C
Nominal size:DN 50-1200
End connection:Double flange
Connection standards:ASME,BS, DIN,EN, ISO
Body material:DI
Body coating:Epoxy
Seat material:EPDM, NBR
Disc materials:DI
Actuator:Worm gearbox
|

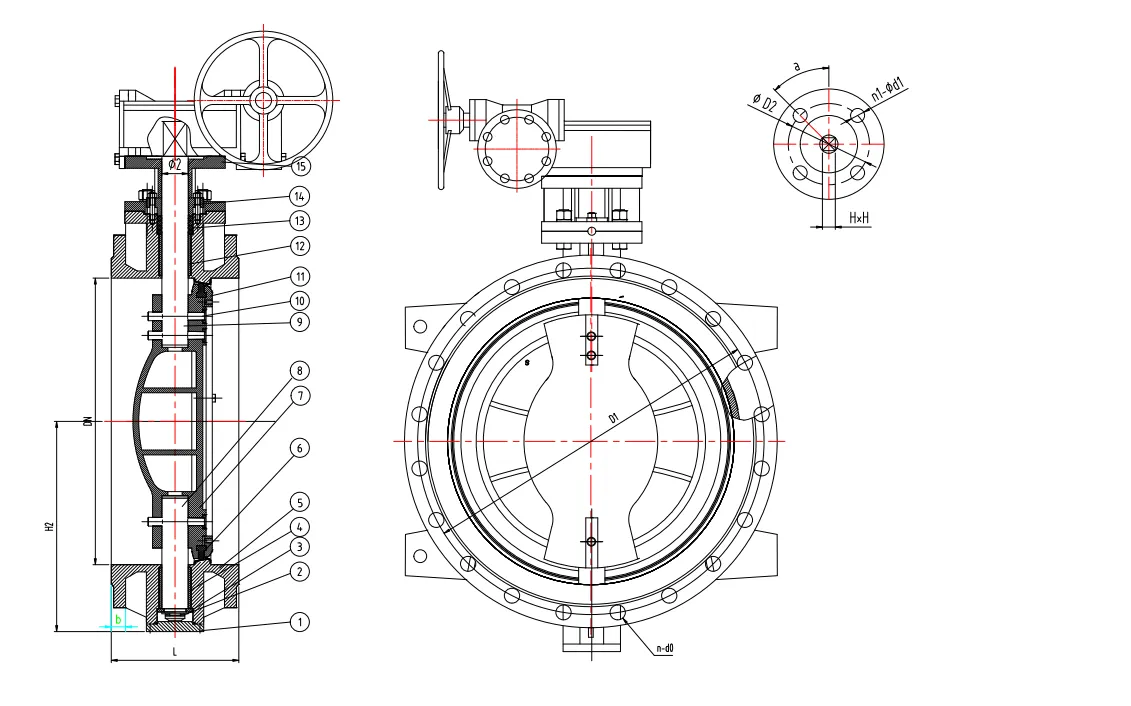

Technical Parameters Series 14 |
||||||
|
SIZE |
DN |
L |
PN10 |
PN16 |
||
|
D1 |
n-d0 |
D1 |
n-d0 |
|||
|
4" |
100 |
190 |
180 |
8-19 |
180 |
8-19 |
|
6" |
150 |
210 |
240 |
8-23 |
240 |
8-23 |
|
8" |
200 |
230 |
295 |
8-23 |
295 |
8-23 |
|
10" |
250 |
250 |
350 |
12-23 |
355 |
12-28 |
|
12" |
300 |
270 |
400 |
12-23 |
410 |
12-28 |
|
14" |
350 |
290 |
460 |
16-23 |
470 |
16-28 |
|
16" |
400 |
310 |
515 |
16-28 |
525 |
16-31 |
|
18" |
450 |
330 |
565 |
20-28 |
585 |
20-31 |
|
20" |
500 |
350 |
620 |
20-28 |
650 |
20-34 |
|
24" |
600 |
390 |
725 |
20-31 |
770 |
20-37 |
