Category: Butterfly Valve

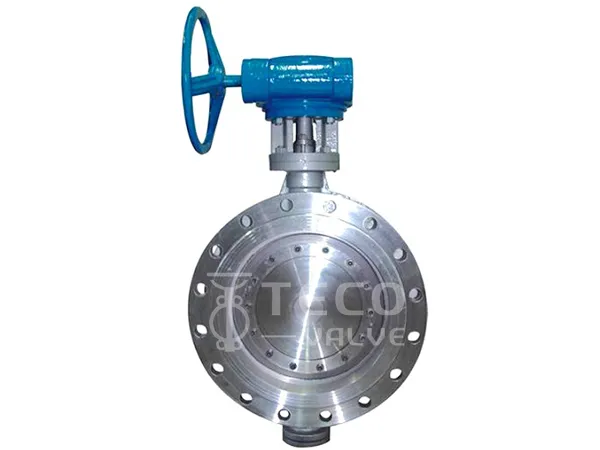

Butterfly Valve Triple Offset Design
Model:D343H
Working pressure :16 Bar
Working temperature:-29~350°C
Nominal size:DN 50-1200
End connection:Double flange
Connection standards:ASME,BS, DIN,EN, ISO
Body material:WCB, Stainless steel
Seat material:Stainless steel
Disc materials:WCB, Stainless steel
Actuator:Worm gearbox
|
Technical Parameters PN16 |
|||||||
|
SIZE |
DN |
L |
D |
D1 |
D2 |
C |
N-ΦG |
|
2" |
50 |
108 |
160 |
125 |
100 |
20 |
4-Φ18 |
|
2-1/2" |
65 |
112 |
180 |
145 |
120 |
20 |
4-Φ18 |
|
3" |
85 |
114 |
195 |
160 |
135 |
20 |
8-Φ18 |
|
4" |
100 |
127 |
215 |
180 |
155 |
22 |
8-Φ18 |
|
5" |
125 |
140 |
245 |
210 |
185 |
22 |
8-Φ18 |
|
6" |
150 |
140 |
280 |
240 |
210 |
24 |
8-Φ23 |
|
8" |
200 |
152 |
335 |
295 |
265 |
24 |
12-Φ23 |
|
10" |
250 |
165 |
405 |
355 |
320 |
26 |
12-Φ26 |
