Category: Butterfly Valve
Full PTFE Line Lug Butterfly Valve
Model:LTD71F
Working pressure :16 Bar
Working temperature:10~150°C
Nominal size:DN 50-300
End connection:Lug
Connection standards:AS, ASME,BS, DIN,EN, ISO, JIS
Body material:Ductile iron
Body coating:Epoxy
Seat material:PTFE
Disc materials:Ductile iron+PTFE/PFA Coated
Actuator:Aluminum lever handle, Steel lever, Worm gearbox, Penumatic, Electrical
|

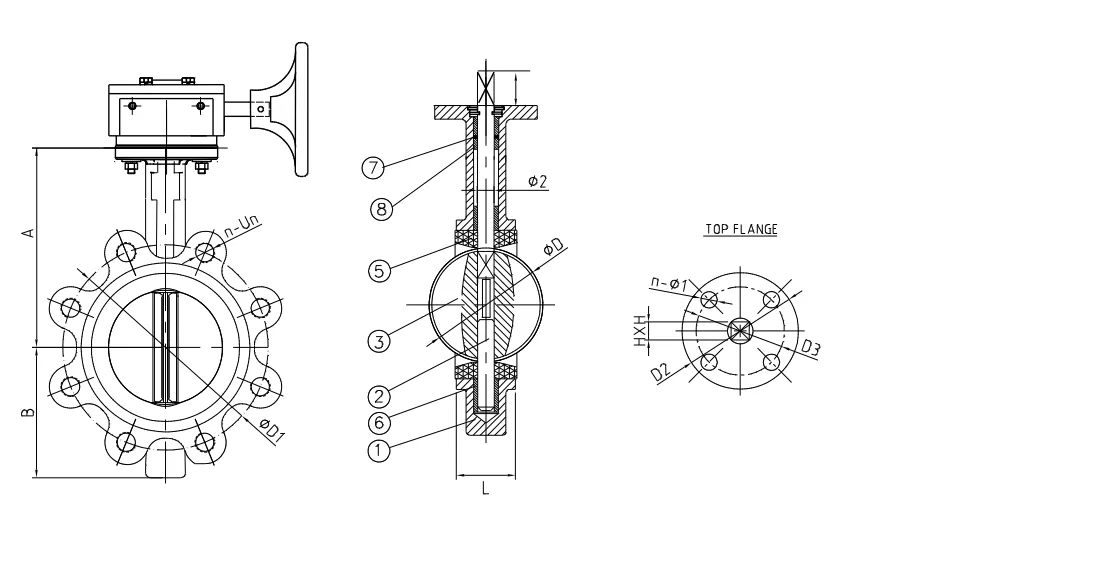

SIZE |
DN |
L |
ΦD1 |
D2 |
D3 |
H |
ISO5211 |
|||
|
PN10 |
PN16 |
150LB |
JIS10K |
|||||||
|
2" |
50 |
43 |
125 |
125 |
120.6 |
120 |
65 |
50 |
9 |
F05 |
|
2-1/2" |
65 |
46 |
145 |
145 |
139.7 |
140 |
65 |
50 |
9 |
F05 |
|
3" |
85 |
46 |
160 |
160 |
152.4 |
150 |
65 |
50 |
9 |
F05 |
|
4" |
100 |
52 |
180 |
180 |
190.5 |
175 |
90 |
70 |
11 |
F07 |
|
5" |
125 |
56 |
210 |
210 |
215.9 |
210 |
90 |
70 |
14 |
F07 |
|
6" |
150 |
56 |
240 |
240 |
241.3 |
240 |
90 |
70 |
14 |
F07 |
|
8" |
200 |
60 |
295 |
295 |
298.4 |
290 |
125 |
102 |
17 |
F10 |
|
10" |
250 |
68 |
350 |
355 |
361.9 |
355 |
125 |
102 |
22 |
F10 |
|
12" |
300 |
78 |
400 |
410 |
431.8 |
400 |
125 |
102 |
22 |
F10 |
