Category: Gate Valve
ASTM A126B OS&Y Gate Valve Metal Seat
Model:Z41T-150/Z41H-150
Working pressure :125LB
Working temperature:≤150°C
Nominal size:DN 50-600
End connection:Double Flange
Design standard:API609
Face to face:API609
Flange drilling:ANSI B16.1
Inspection and test:API598
Body material:Cast iron, GG25
Body coating:Epoxy
Disc material:Cast iron, GG25
Seat:Brass, Cr13
Actuator:Handwheel
|

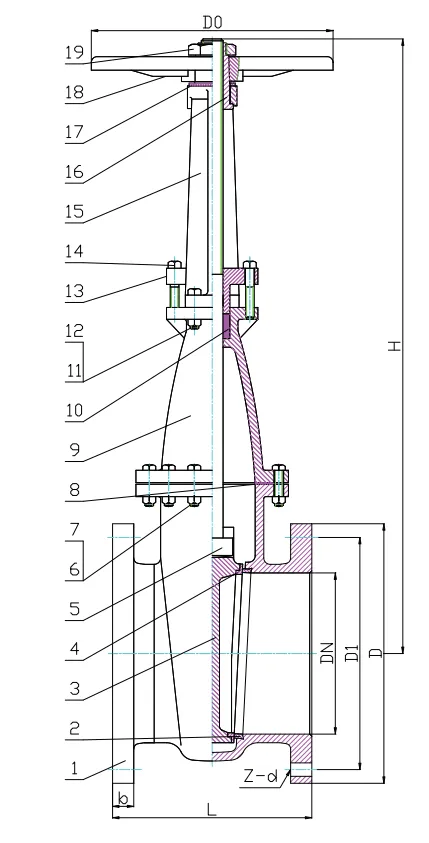

Technical Parameters 125LB |
|||||||
|
DN |
H |
D |
D1 |
L |
T |
H |
Z-d |
|
40 |
310 |
127 |
98.5 |
165 |
15 |
310 |
4-Φ16 |
|
50 |
329 |
152 |
120.5 |
178 |
16 |
320 |
4-Φ19 |
|
65 |
372 |
178 |
139.5 |
190 |
17.5 |
370 |
4-Φ19 |
|
80 |
426 |
191 |
152.5 |
203 |
19 |
410 |
4-Φ19 |
|
100 |
496 |
229 |
190.5 |
229 |
24 |
480 |
8-Φ19 |
|
125 |
576 |
254 |
216 |
254 |
24 |
560 |
8-Φ22 |
|
150 |
630 |
279 |
241.5 |
267 |
25.5 |
640 |
8-Φ22 |
|
200 |
739 |
343 |
298.5 |
292 |
29 |
810 |
8-Φ22 |
|
250 |
877 |
406 |
362 |
330 |
30.5 |
950 |
12-Φ25 |
|
300 |
1011 |
483 |
432 |
356 |
32 |
1050 |
12-Φ25 |
|
350 |
1152 |
533 |
476 |
381 |
35 |
1200 |
12-Φ29 |
|
400 |
1284 |
597 |
539.5 |
406 |
37 |
1360 |
16-Φ29 |
|
500 |
1350 |
699 |
635 |
457 |
43 |
1650 |
20-Φ32 |
|
600 |
1350 |
813 |
749.5 |
508 |
48 |
1980 |
20-Φ35 |
