Category: Gate Valve
DIN F5 Gate Valve Series 15
Model:Z45X
Working pressure :PN16
Working temperature:0~80°C
Nominal size:DN 50-300
End connection:Double Flange
Design standard:DIN EN1171:2003
Face to face:DIN EN558-1 /F 5
Flange drilling:DIN EN1092-2
Inspection and test:DIN EN12266-1
Body material:Ductile iron, GGG40/50
Body coating:Epoxy
Wedge material:Ductile iron + EPDM/NBR Coated
Actuator:Handwheel
|

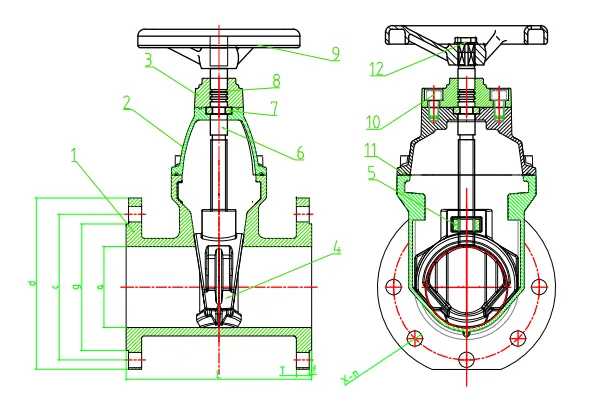

Technical Parameters DIN F5 PN10/PN16 |
||||||||
|
DN |
L |
a |
d |
c |
x-n |
T |
f |
g |
|
50 |
250 |
50 |
165 |
125 |
4-Φ19 |
19 |
3 |
99 |
|
65 |
270 |
65 |
185 |
145 |
4-Φ19 |
19 |
3 |
118 |
|
85 |
280 |
85 |
200 |
160 |
8-Φ19 |
19 |
3 |
132 |
|
100 |
300 |
100 |
220 |
180 |
8-Φ19 |
19 |
3 |
156 |
|
125 |
325 |
125 |
250 |
210 |
8-Φ19 |
19 |
3 |
184 |
|
150 |
350 |
150 |
285 |
240 |
8-Φ23 |
19 |
3 |
211 |
|
200 |
400 |
200 |
340 |
295 |
8-Φ23/12-Φ23 |
20 |
3 |
266 |
|
250 |
450 |
250 |
395/405 |
350/355 |
12-Φ23/12-Φ28 |
22 |
3 |
319 |
|
300 |
500 |
300 |
445/460 |
400/410 |
12-Φ23/12-Φ28 |
25 |
4 |
370 |
