Category: Gate Valve
JIS10K CI Gate Valve NRS
Model:Z45T-10K/Z41H-10K
Working pressure :16Bar
Working temperature:≤150°C
Nominal size:DN 50-600
End connection:Double Flange
Design standard:KS B 2350
Face to face:JIS B2002
Flange drilling:JIS B2212
Inspection and test:JIS B2003
Body material:Cast iron, GG25
Body coating:Epoxy
Disc material:Cast iron, GG25
Seat:Brass, Cr13
Actuator:Handwheel
|

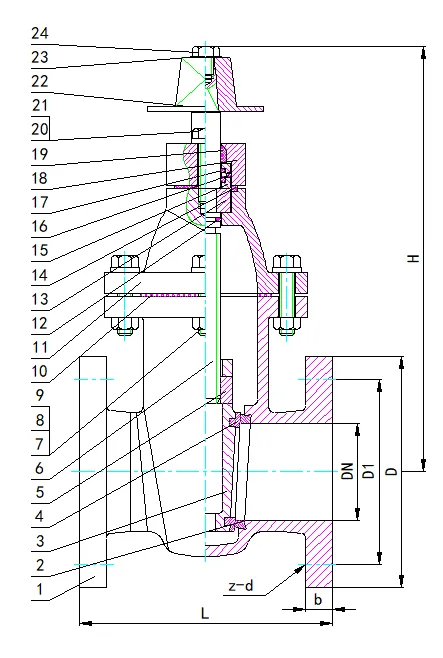

Technical Parameters JIS10K |
||||||
|
DN |
D |
D1 |
L |
b |
H |
Z-d |
|
40 |
140 |
105 |
165 |
15 |
256 |
4-Φ19 |
|
50 |
155 |
120.0 |
178 |
16 |
274 |
4-Φ19 |
|
65 |
175 |
140.0 |
190 |
17.5 |
303 |
4-Φ19 |
|
80 |
185 |
150.0 |
203 |
19 |
331 |
8-Φ19 |
|
100 |
210 |
175.0 |
229 |
24 |
368 |
8-Φ19 |
|
125 |
250 |
210 |
254 |
24 |
416 |
8-Φ23 |
|
150 |
280 |
240.0 |
267 |
25.5 |
457 |
8-Φ23 |
|
200 |
330 |
290.0 |
292 |
29 |
550 |
12-Φ23 |
|
250 |
400 |
355 |
330 |
30.5 |
632 |
12-Φ25 |
|
300 |
445 |
400 |
356 |
32 |
711 |
16-Φ25 |
|
350 |
490 |
445 |
381 |
35 |
805 |
16-Φ25 |
|
400 |
560 |
510.0 |
406 |
37 |
884 |
16-Φ27 |
