Category: Gate Valve
PN16 Gate Valve A216 WCB
Model:Z40H-16C
Working pressure :PN16
Working temperature:-29~425°C
Nominal size:DN 50-300
End connection:Double Flange
Design standard:DIN EN12288-2003
Face to face:DIN EN558-1:1995
Flange drilling:DIN EN1092-1:2002
Inspection and test:DIN EN12266:2003
Body material:WCB
Body coating:Epoxy
Disc material:WCB
Seat:Cr13
Actuator:Handwheel
|

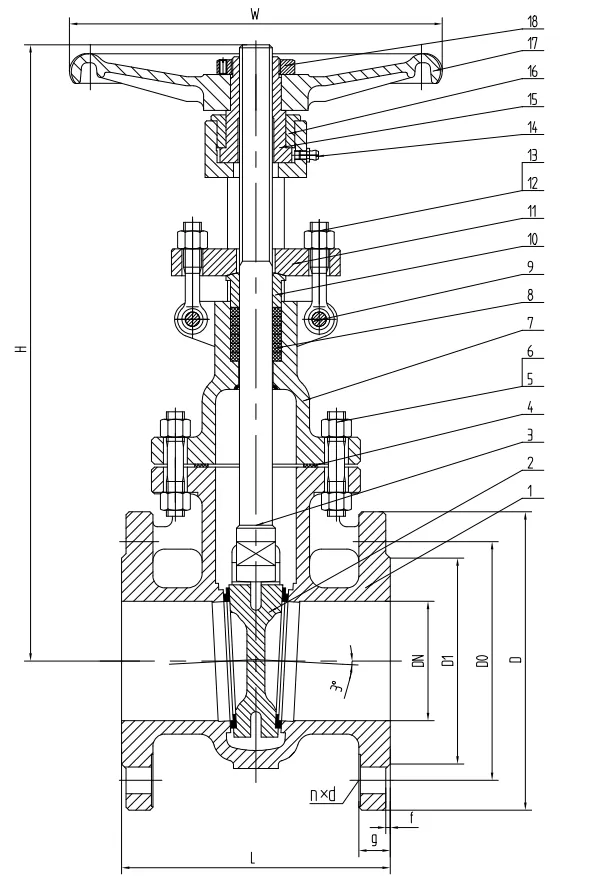

Technical Parameters PN16 |
|||||||
|
DN |
L |
D |
D0 |
D1 |
n-d |
g |
f |
|
40 |
140 |
150 |
110 |
88 |
4-Φ18 |
18 |
3 |
|
50 |
150 |
165 |
125 |
102 |
4-Φ18 |
18 |
3 |
|
65 |
170 |
185 |
145 |
122 |
8-Φ18 |
18 |
3 |
|
80 |
180 |
200 |
160 |
138 |
8-Φ18 |
20 |
3 |
|
100 |
190 |
220 |
180 |
158 |
8-Φ18 |
20 |
3 |
|
125 |
200 |
250 |
210 |
188 |
8-Φ18 |
22 |
3 |
|
150 |
210 |
285 |
240 |
212 |
8-Φ22 |
22 |
3 |
|
200 |
230 |
340 |
295 |
268 |
12-Φ22 |
24 |
3 |
|
250 |
250 |
405 |
355 |
320 |
12-Φ26 |
26 |
3 |
|
300 |
270 |
460 |
410 |
378 |
12-Φ26 |
28 |
4 |
