Category: Globe Valve
CS Globe Valve ASME B16.34
Model:J41H-150LB
Working pressure :2.2Mpa
Working temperature:-29~425°C
Nominal size:DN 25-400
End connection:Double Flange
Design standard:API 600
Face to face:ASME B16.10
Flange drilling:ASME B16.5
Inspection and test:API 598
Body material:WCB SS304 SS306
Disc material:WCB SS304 SS316
Seat:SS
Actuator:Handwheel
|

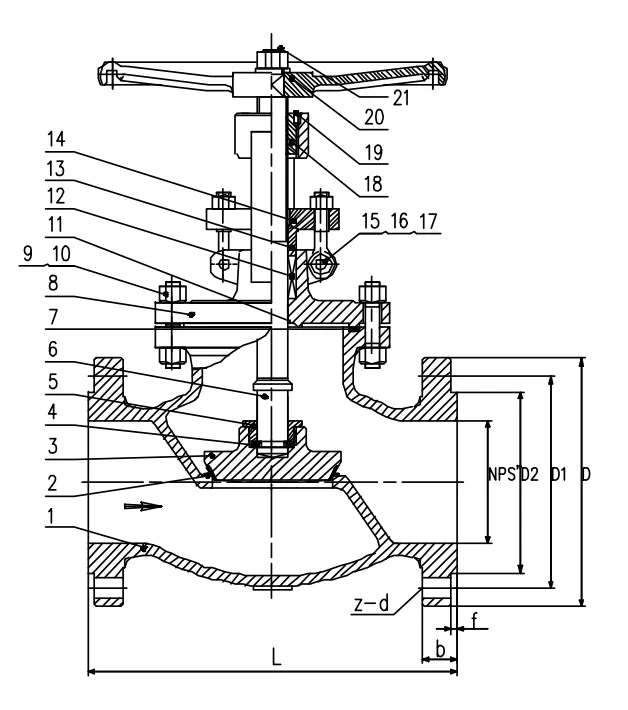

Technical Parameters Class 150 |
||||||
|
DN |
L |
D |
D1 |
D2 |
b |
z-Φd |
|
1" |
127 |
108 |
79.5 |
51 |
12 |
4-Φ15 |
|
1-1/4" |
140 |
117 |
89 |
64 |
13 |
4-Φ15 |
|
1-1/2" |
165 |
127 |
98.5 |
73 |
15 |
4-Φ15 |
|
2" |
203 |
152 |
120.5 |
92 |
16 |
4-Φ19 |
|
2-1/2" |
216 |
178 |
139.5 |
105 |
18 |
4-Φ19 |
|
3" |
241 |
191 |
152.5 |
127 |
19 |
4-Φ19 |
|
4" |
292 |
229 |
190.5 |
157 |
24 |
8-Φ19 |
|
5" |
356 |
254 |
216 |
186 |
24 |
8-Φ22 |
|
6" |
406 |
279 |
241.5 |
216 |
26 |
8-Φ22 |
|
8" |
495 |
343 |
298.5 |
270 |
29 |
8-Φ22 |
