Category: Globe Valve
Cast Iron Globe Valve DIN Standard
Model:J41T-16/J41H-16
Working pressure :PN16
Working temperature:≤150°C
Nominal size:DN 15-300
End connection:Double Flange
Design standard:DIN3352
Face to face:DIN3202 F1
Flange drilling:DIN EN1092-2
Inspection and test:DIN EN12266-1
Body material:Cast iron, GG25
Body coating:Epoxy
Disc material:Cast iron, GG25
Seat:Stainless steel
Actuator:Handwheel
|

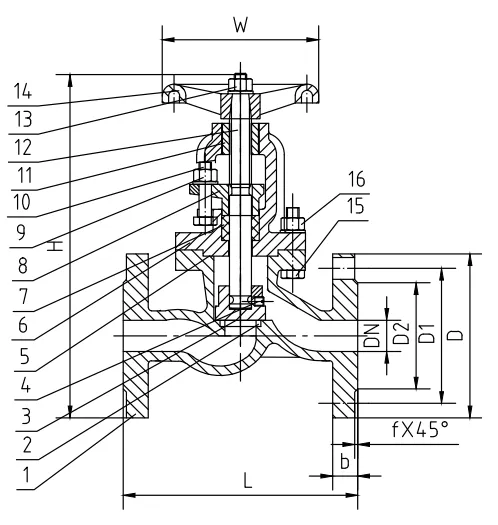

Technical Parameters PN16 |
|||||||
|
DN |
L |
D |
D1 |
D2 |
n-d |
b |
f |
|
15 |
130 |
95 |
65 |
46 |
4-Φ14 |
14 |
2 |
|
20 |
150 |
105 |
75 |
56 |
4-Φ14 |
16 |
2 |
|
25 |
160 |
115 |
85 |
65 |
4-Φ14 |
16 |
2 |
|
32 |
180 |
140 |
100 |
76 |
4-Φ18 |
18 |
2 |
|
40 |
200 |
150 |
110 |
84 |
4-Φ18 |
18 |
3 |
|
50 |
230 |
165 |
125 |
99 |
4-Φ18 |
20 |
3 |
|
65 |
290 |
185 |
145 |
118 |
4-Φ18 |
20 |
3 |
|
85 |
310 |
200 |
160 |
132 |
8-Φ18 |
22 |
3 |
|
100 |
350 |
220 |
180 |
156 |
8-Φ18 |
24 |
3 |
|
125 |
400 |
250 |
210 |
184 |
8-Φ18 |
26 |
3 |
|
150 |
480 |
285 |
240 |
211 |
8-Φ23 |
26 |
3 |
|
200 |
600 |
340 |
295 |
266 |
12-Φ23 |
30 |
3 |
|
250 |
730 |
405 |
355 |
319 |
12-Φ27 |
32 |
3 |
|
300 |
850 |
460 |
410 |
370 |
12-Φ27 |
32 |
4 |
