Category: Knife Gate Valve

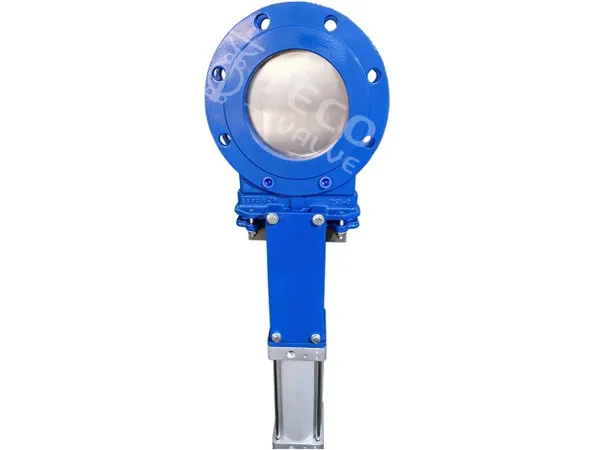

Rising Stem Knife Gate Valve Uni-directional
Model:DZ571X
Working pressure :10 Bar
Working temperature:0~110°C
Nominal size:DN 200-800
End connection:Wafer
Connection standards:AS, ASME,BS, DIN,EN, ISO, JIS
Body material:Ductile iron, GGG40/50, EN-GJS-400-15, SG iron material
Body coating:Epoxy
Seat material:EPDM, NBR
Disc materials:SS304, SS316
Actuator:Handwheel, Worm gearbox, Bevel Gear, Chainwheel, Penumatic, Electrical
|
SIZE |
DN |
L |
D1 |
|||
|
PN10 |
PN16 |
150LB |
JIS10K |
|||
|
8" |
200 |
70 |
295 |
295 |
298.4 |
290 |
|
10" |
250 |
70 |
350 |
355 |
361.9 |
355 |
|
12" |
300 |
76 |
400 |
410 |
431.8 |
400 |
|
14" |
350 |
76 |
460 |
470 |
476.2 |
445 |
|
16" |
400 |
89 |
515 |
525 |
539.7 |
510 |
|
18" |
450 |
89 |
565 |
585 |
577.8 |
565 |
|
20" |
500 |
114 |
620 |
650 |
635 |
620 |
|
24" |
600 |
114 |
725 |
770 |
749.3 |
730 |
|
28" |
700 |
127 |
840 |
840 |
863.6 |
840 |
|
32" |
800 |
127 |
950 |
950 |
977.9 |
950 |
