Category: Rubber Joint

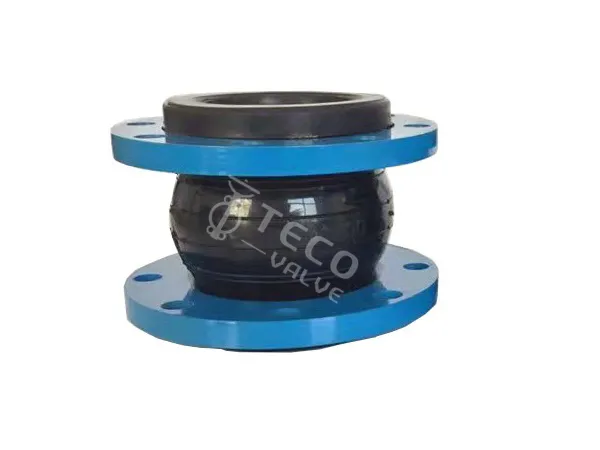

Double Ball Expansion Rubber Joints with Reinforced Ring
Working pressure :PN16
Working temperature:0~110°C
Nominal size:DN 32-600
End connection:PN10, PN16, 150LB, JIS10K, Table D, Table E
Design standard:DIN3352
Face to face:Manufacture’s standard
Flange drilling:DIN EN1092-2
Inspection and test:DIN EN12266-1
Body material:EPDM, NBR
Flange material:Carbon steel, stainless steel
|
Technical Parameters PN16 |
||||
|
DN |
L |
D |
D1 |
n-Φ |
|
32 |
165 |
135 |
100 |
4-Φ18 |
|
40 |
165 |
145 |
110 |
4-Φ18 |
|
50 |
165 |
160 |
125 |
4-Φ18 |
|
65 |
175 |
180 |
145 |
4-Φ18 |
|
85 |
175 |
195 |
160 |
8-Φ18 |
|
100 |
225 |
215 |
180 |
8-Φ18 |
|
125 |
225 |
245 |
210 |
8-Φ18 |
|
150 |
225 |
280 |
240 |
8-Φ23 |
|
200 |
325 |
335 |
295 |
12-Φ23 |
|
250 |
325 |
405 |
355 |
12-Φ26 |
|
300 |
325 |
460 |
410 |
12-Φ26 |
