Category: Rubber Joint

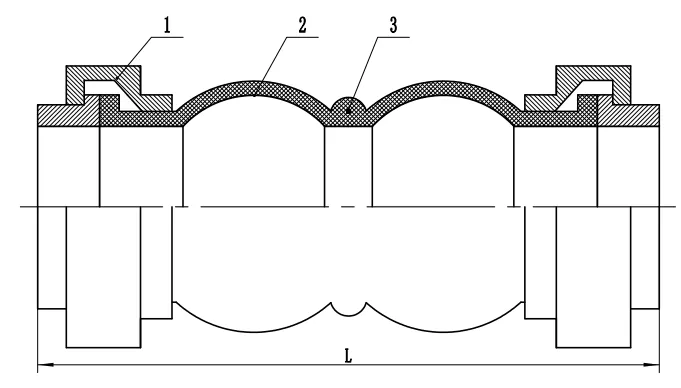

Threaded Natural Rubber Joint
Working pressure :PN16
Working temperature:0~110°C
Nominal size:DN 15-80
End connection:Threaded
Design standard:Manufacture’s standard
Body material:EPDM, NBR
Flange material:Carbon steel, stainless steel
|
Technical Parameters |
||||
|
DN |
L |
Axial Compression |
Axial Elongation |
Deflection Angle |
|
15 |
190 |
10 |
5 |
40 |
|
20 |
195 |
10 |
5 |
40 |
|
25 |
200 |
10 |
5 |
40 |
|
32 |
220 |
10 |
5 |
40 |
|
40 |
220 |
10 |
5 |
40 |
|
50 |
220 |
10 |
5 |
40 |
|
65 |
245 |
10 |
5 |
40 |
|
80 |
285 |
10 |
5 |
40 |
